Balcony Guardrail with Ceramic Tile Inserts

Project Overview

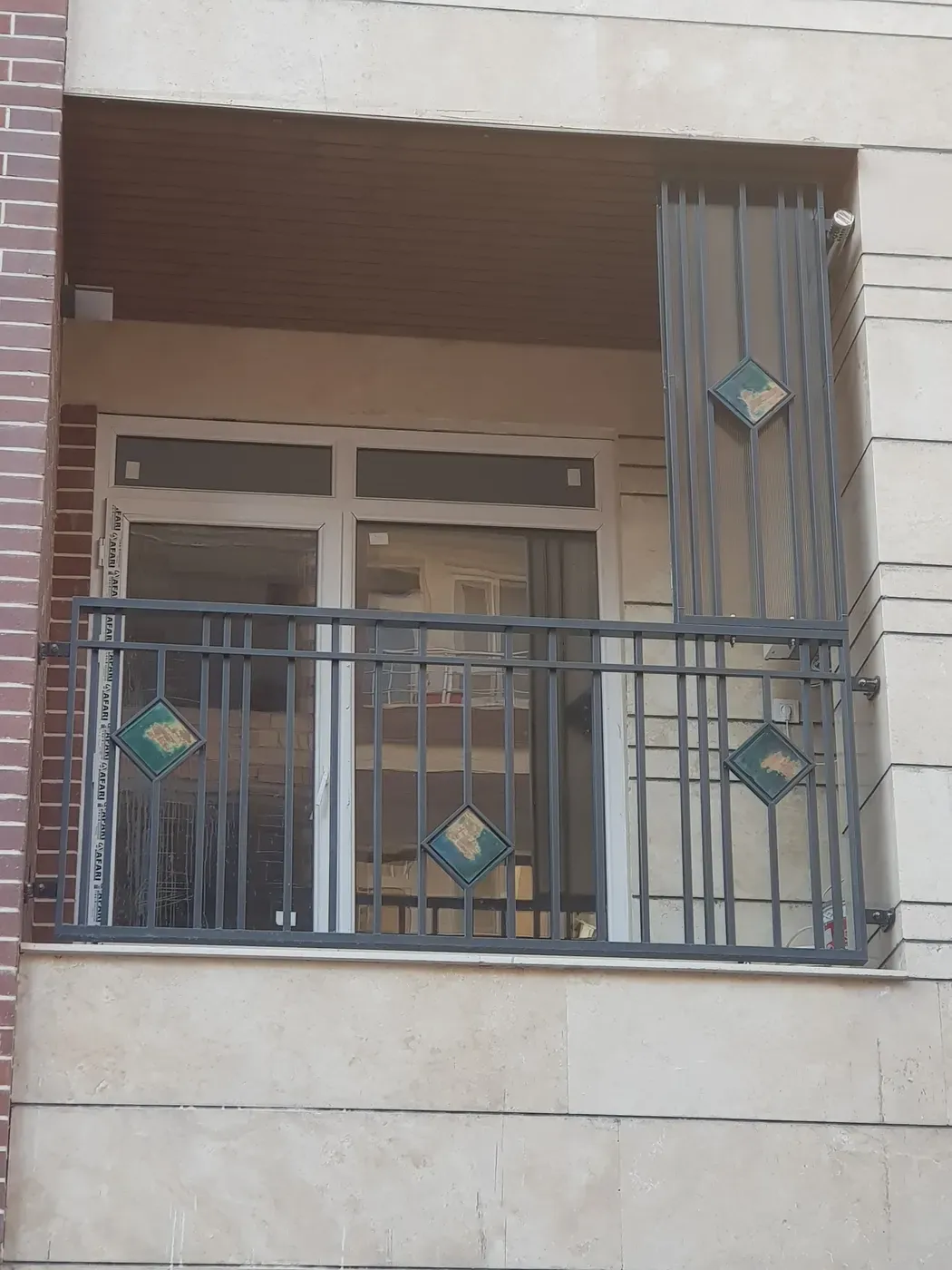

A balcony guardrail in steel with hand-painted ceramic tiles set into it. The bars run in a rhythm of tall and short verticals, and at four points along the run a diamond tile sits in its own welded steel surround.

The run turns the corner and continues upward as a taller screen where the balcony meets the wall.

What We Built

• A guardrail frame in steel bar, with the vertical infill set out in a repeating tall and short pattern

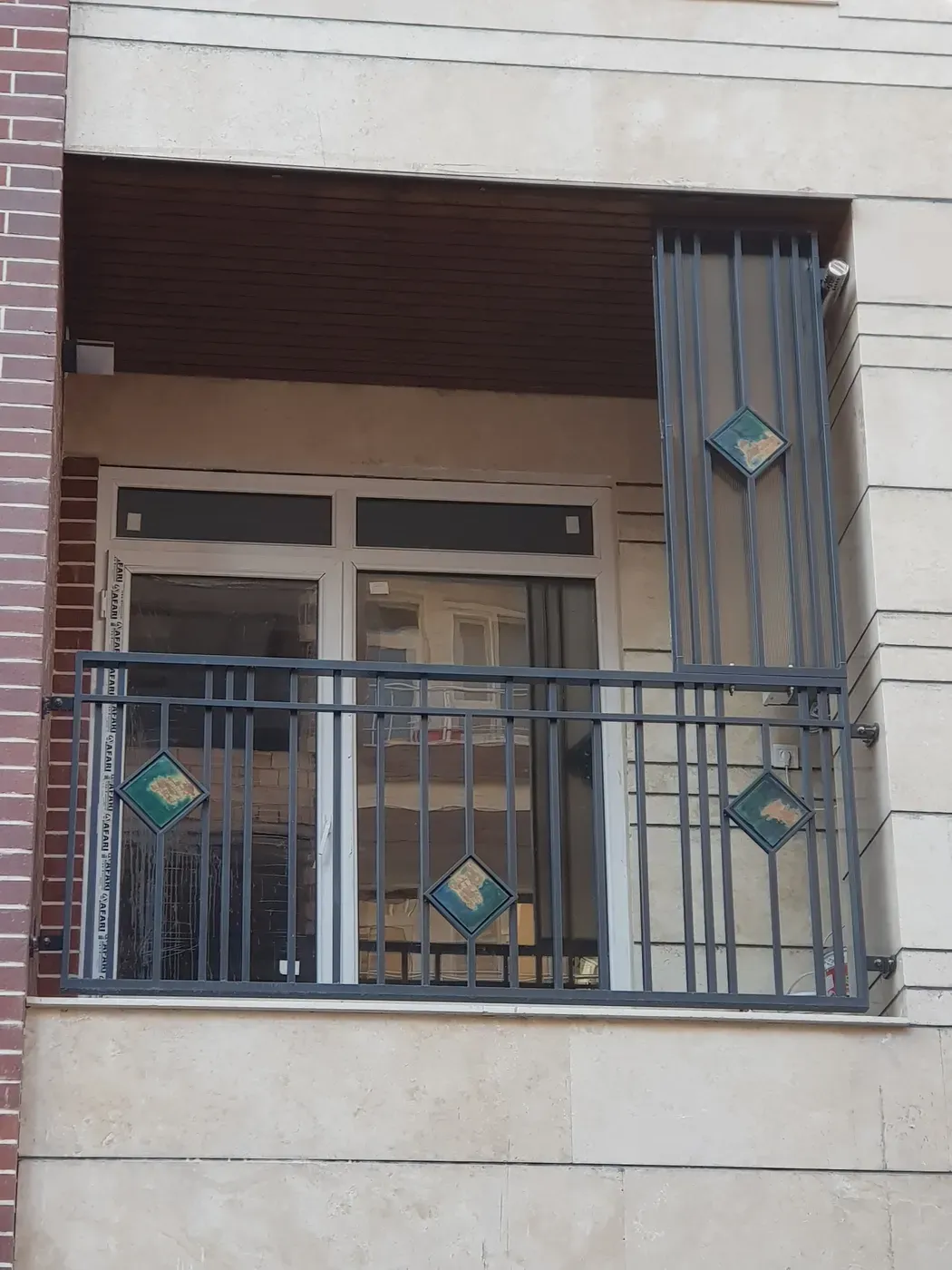

• Diamond surrounds fabricated from flat steel to hold each ceramic tile square in the plane of the rail
• A corner return that carries the same bar pattern up into a taller screen panel
• Wall and slab fixings set into the stone facade at each end of the run
• A dark grey finish over the whole assembly

Why It Was Built This Way

The tiles are the reason this rail exists, so the metalwork is arranged around them. Each one sits in its own frame rather than being sandwiched between bars, which means the tile carries no load at all. If one is ever damaged it can come out without touching the rail.

The alternating bar heights break up what would otherwise be a flat run of identical verticals across a wide opening. It gives the tiles somewhere to sit visually instead of floating in a uniform grid.

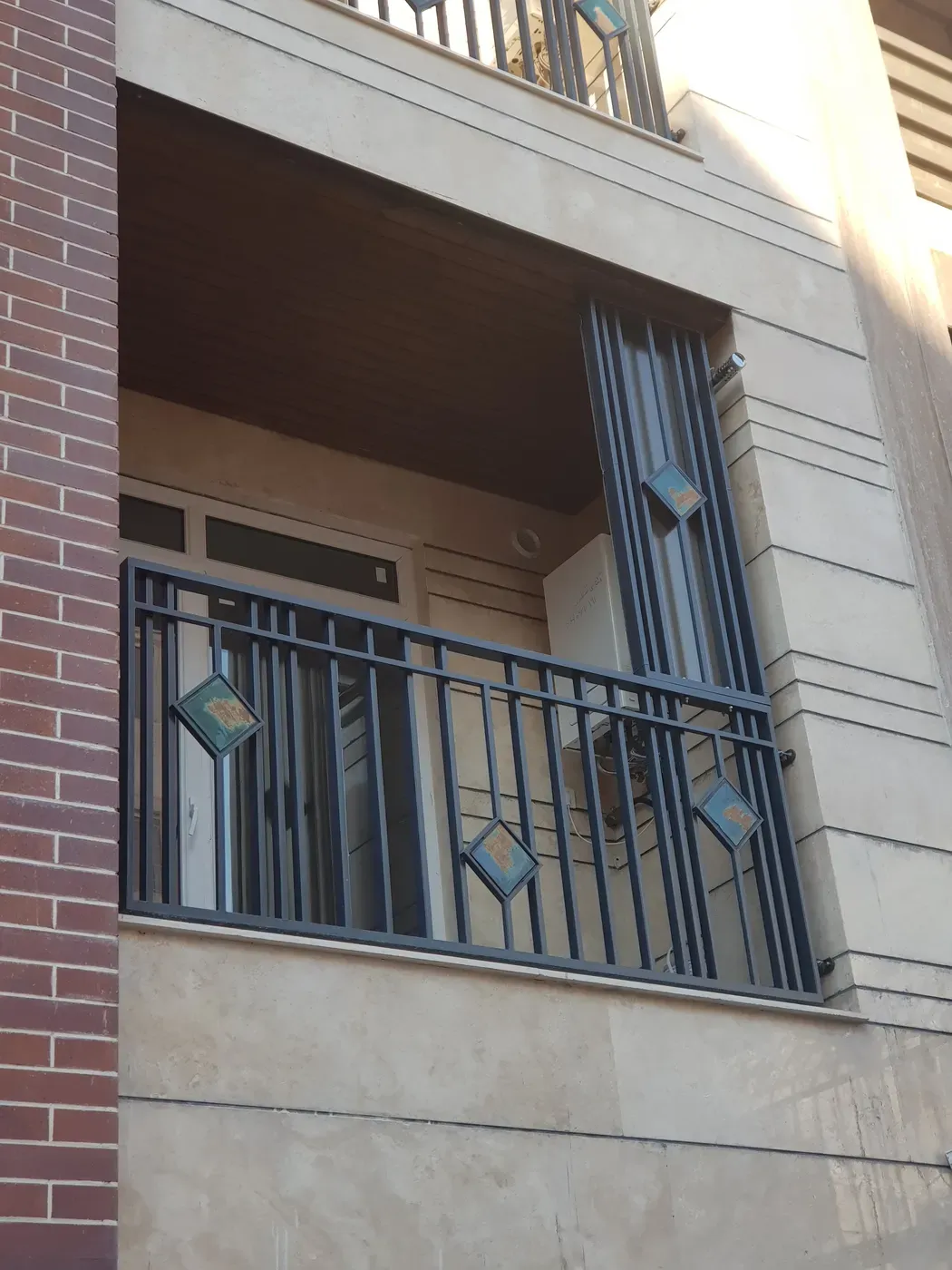

The corner return matters more than it looks. Balcony rails usually stop dead at the wall and leave an awkward gap against the stone. Carrying the pattern round and up closes that off and makes the rail read as one piece rather than a panel bolted on.

Project Gallery

Guardrails like this one are part of our custom railings work, which covers exterior guards, code heights and infill options.
