Wall-mounted wine walls

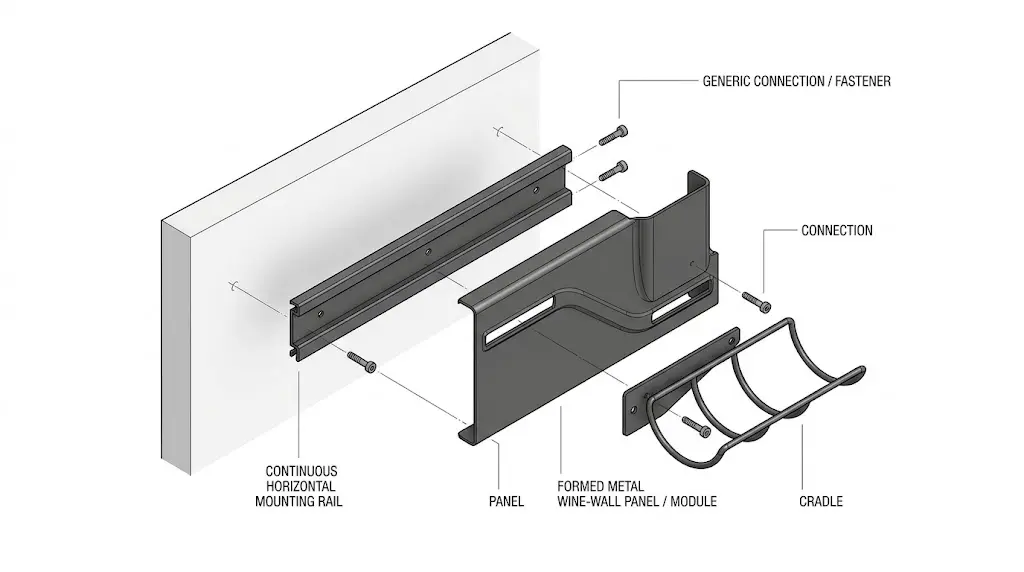

Label-forward steel panels that mount on a continuous horizontal standard. The standard takes the fixings into the structure; the panels hook onto it, so panel positions are not tied to where the studs happen to fall.

Design visualisations and drawings shown. This system is in development and the images are not photographs of completed TrussMetal installations. Final dimensions, materials and detailing are confirmed for each project.

Sizes and capacity

Three module widths and four module heights, stackable, so a run can grow with the wall rather than stopping at a catalogue size.

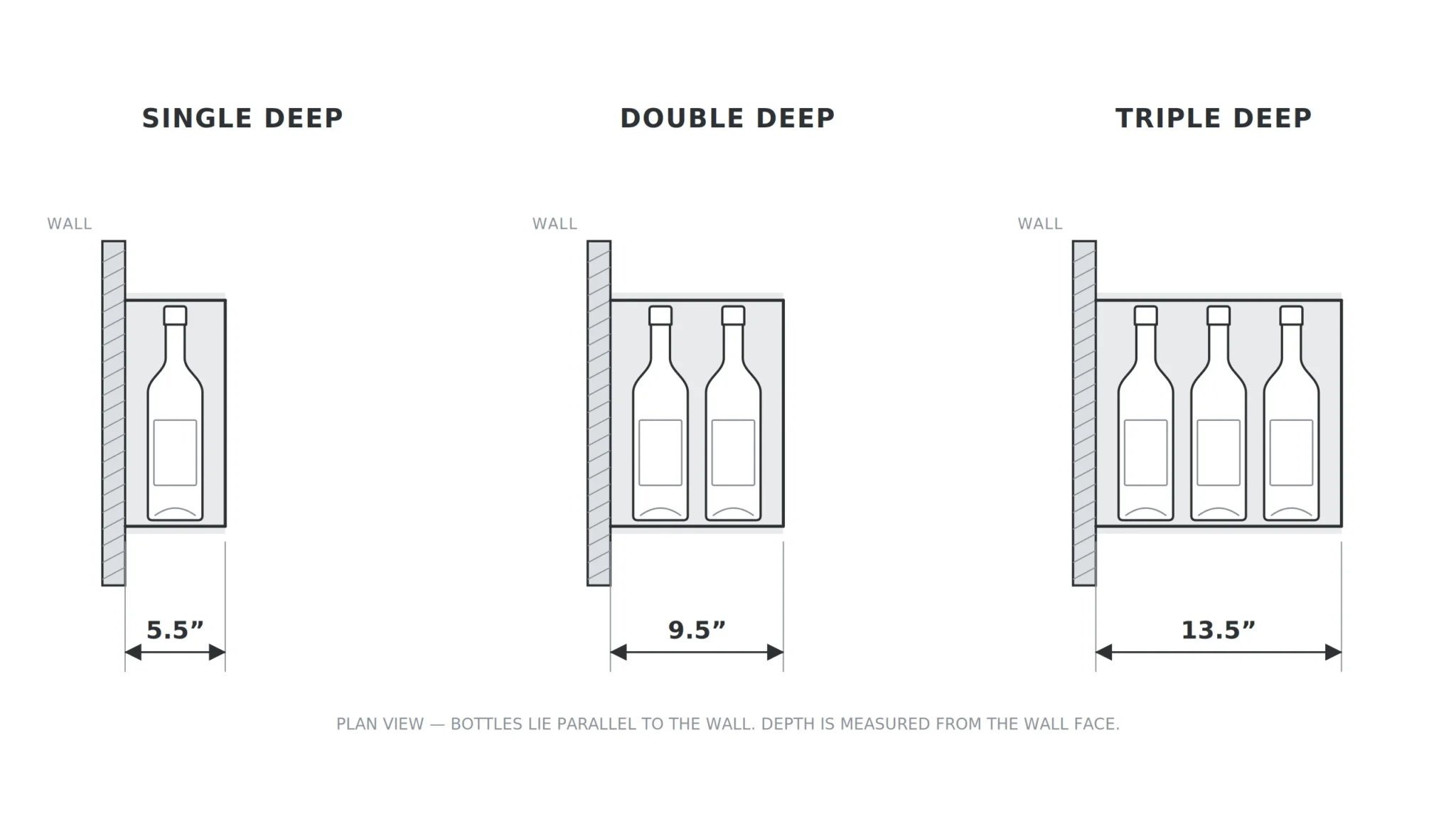

Figures are single depth. A double-deep panel holds twice as many bottles in the same wall area, a triple-deep panel three times, at 9 and a half and 13 and a half inches of projection respectively against 5 and a half inches single deep.

Mounting

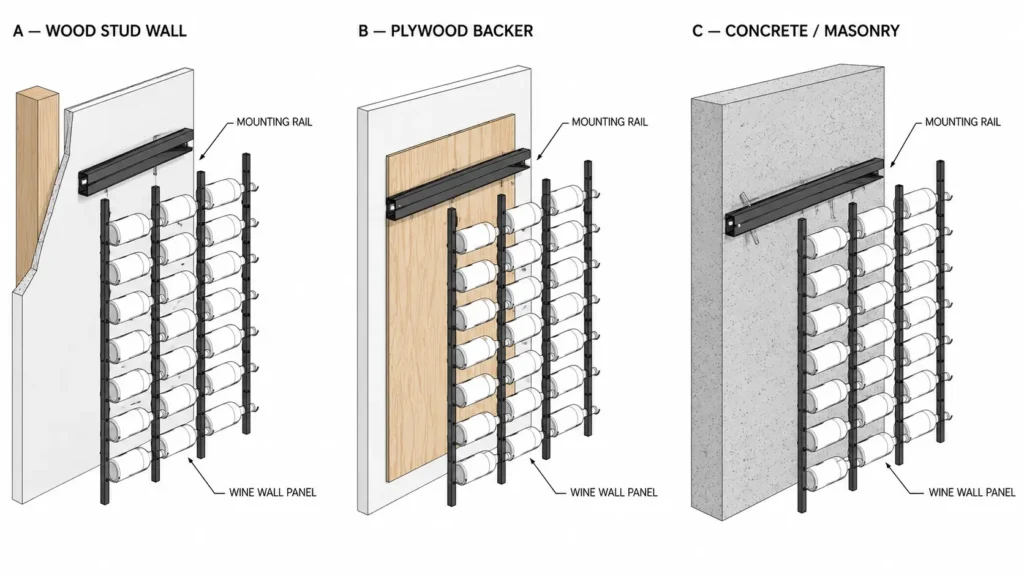

Panels hang from a continuous horizontal standard fixed back to the wall structure. Which fixings that takes depends on what the wall is: wood studs, steel studs, concrete or masonry, or a backer added before the drywall goes on.

We confirm the fixing method against your wall on site. We do not publish fastener schedules or load figures for a wall we have not seen.

What goes with it

Stemware channel, floating shelf, an angled presentation row for bottles you want facing out, and a wider cradle for magnums. All work off the same mounting standard.

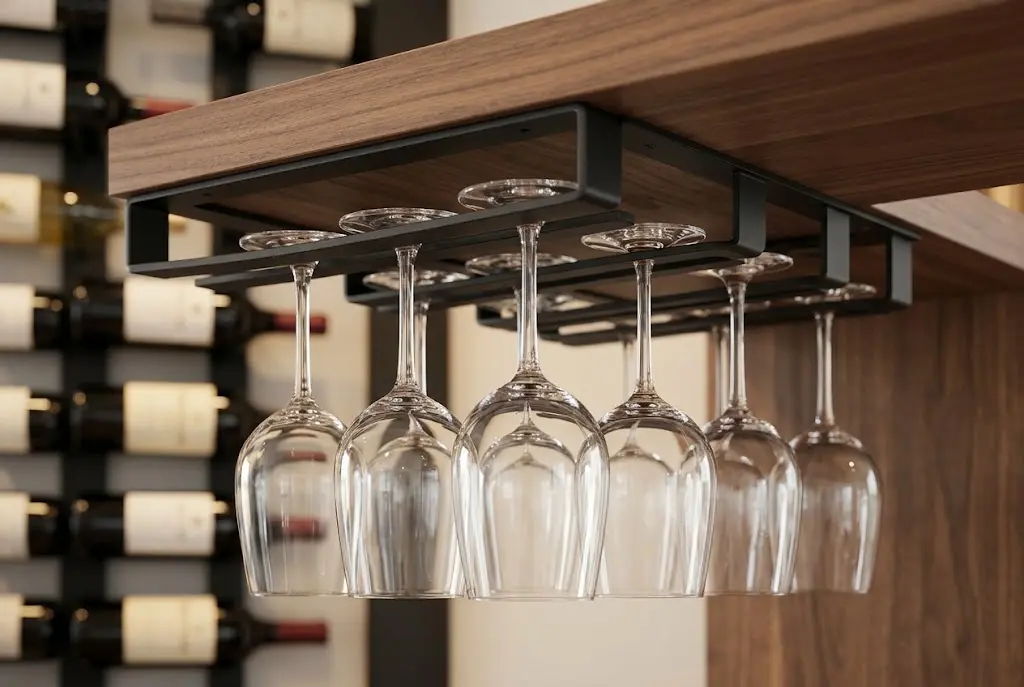

Stemware channel

Glasses hang below the wine, on the same standard.

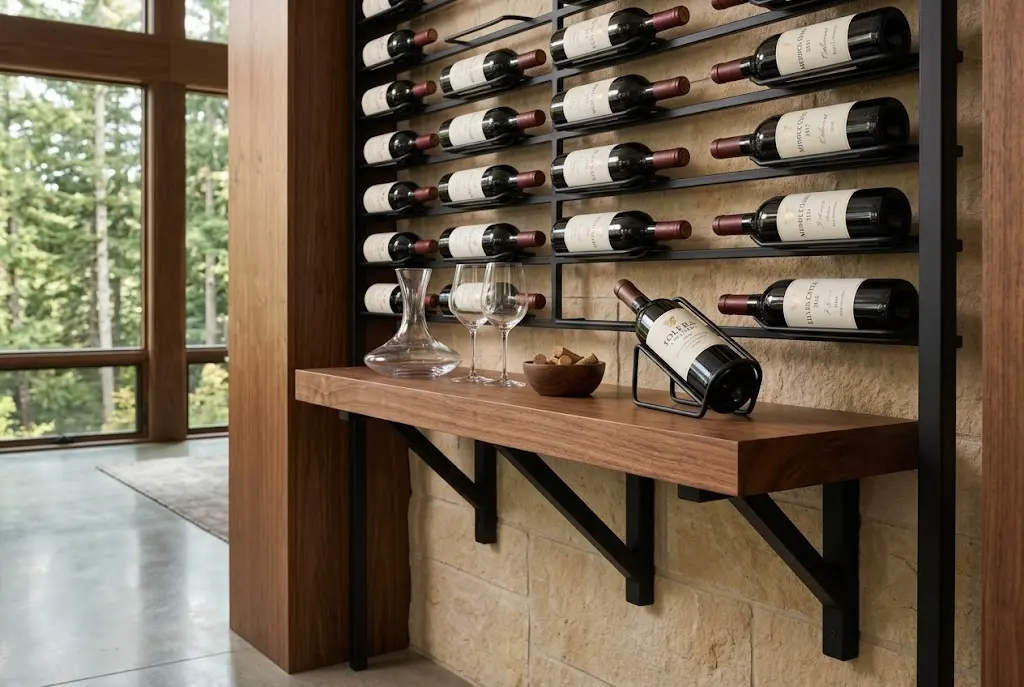

Floating shelf

Timber or glass on a steel bracket, for decanters, glasses or the bottle that is open.

Powder coating and specialist finishing processes are sourced through finishing specialists rather than carried out in our own shop.

Talk to us about a wall-mounted wine wall

Sizes, finish and layout are settled per project. Send the wall dimensions and we will come back with a layout and a quote.
